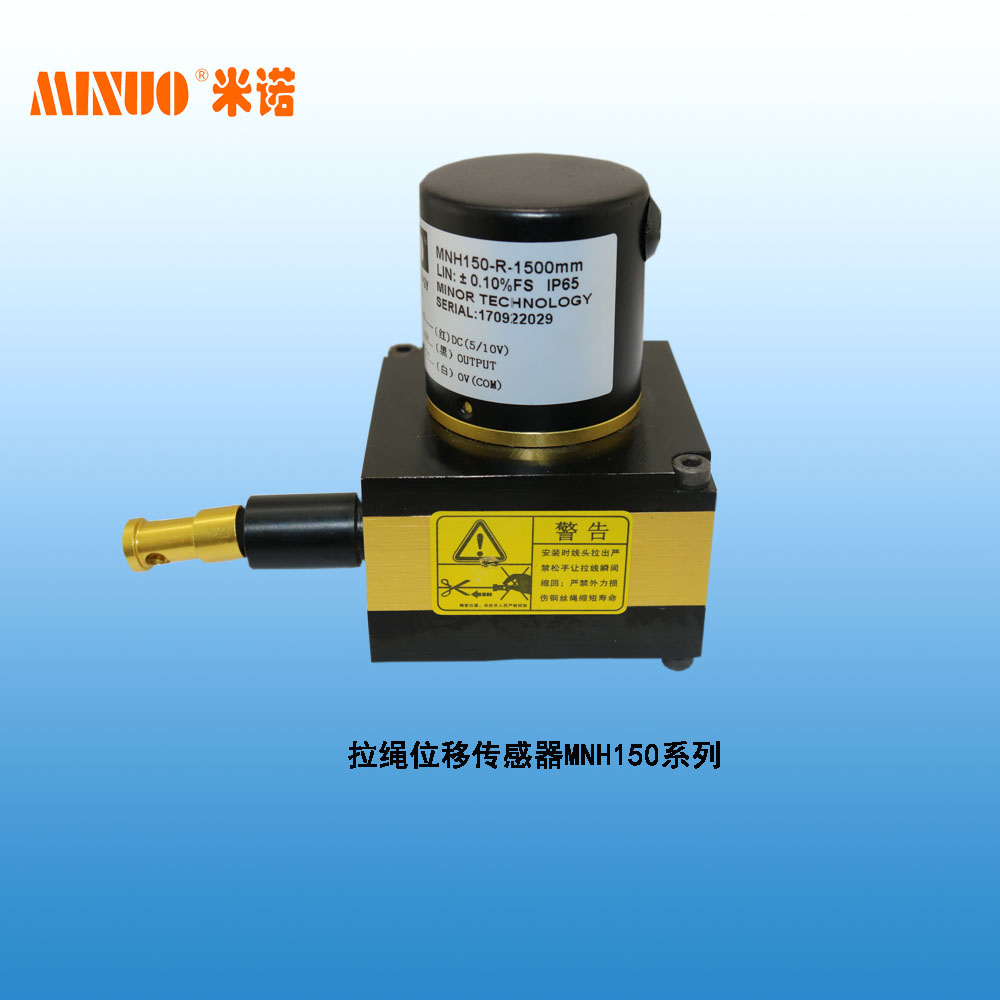

Wire displacement transducer MNH-150
Wire displacement transducer/Linear wire potentiometer is composed
of a photoelectric acquisition part (incremental encoder, absolute encoder,
angle displacement sensor, precision resistance etc.) composition and a
group of mechanical shell device.
Shell using aluminum alloy material, the outer surface oxidation treatment,
hardness and wear resistance; resist compression, shock proof, suitable
for high temperature, high pressure, and other various bad situations of
use; the wire of take-up for the imported stainless steel wire rope, the wire
rope outer plastic coating, strong corrosion resistance, high strength, no
expansion; winding spring mechanism adopts imported stainless steel
material production, corrosion resistance, the wire come back are stability.
Make it become to a compact structure,the small installation space size,
stroke length, convenient and flexible,high precision measurement of first
choice displacement sensor in industrial.
Product features and USES
It’s belongs of Mini Draw Wire Sensor, It’s used to record measurement
the linear length of 0-500mm range. It has analog and digital output, Standardized interface. It’s strong and durable that is
especially suitable the occasion for short distances and high resolution.
The main features: Easy installation, with spare installation datum, many choices according to need; install the space is little, easy in
assembly, without direction. Mechanical tolerance does not affect the measurement precision; It’s Widely used in the linear guide system The hydraulic cylinder system; the stretch systems; storage location; Pressure machinery; Paper manufacturing machinery; textile manufacturing machine; Sheet metal machinery; Printing machinery; Level control with water flush; Construction machinery and other
related size measurement or position control; It could be an external PLC secondary instrument; Single chip collection system.

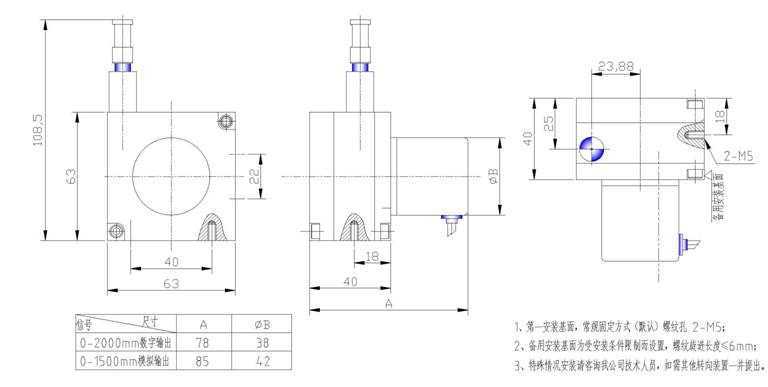

Boundary dimension
Technical parameters
Four wires 4-20mA wiring instructions:
Red:24V DC Black: 0V Yellow:+I White: -I
Three wires: Black with White together
Web: www.minor-tech.com/en/ Skype: minorsteven
Tel:0755-27058268 0755-27058298 Fax:0755-27058238
Email: sensorminor@gmail.com
Wire displacement transducer/Linear wire potentiometer is composed
of a photoelectric acquisition part (incremental encoder, absolute encoder,
angle displacement sensor, precision resistance etc.) composition and a
group of mechanical shell device.
Shell using aluminum alloy material, the outer surface oxidation treatment,
hardness and wear resistance; resist compression, shock proof, suitable
for high temperature, high pressure, and other various bad situations of
use; the wire of take-up for the imported stainless steel wire rope, the wire
rope outer plastic coating, strong corrosion resistance, high strength, no
expansion; winding spring mechanism adopts imported stainless steel
material production, corrosion resistance, the wire come back are stability.
Make it become to a compact structure,the small installation space size,
stroke length, convenient and flexible,high precision measurement of first
choice displacement sensor in industrial.
Product features and USES
It’s belongs of Mini Draw Wire Sensor, It’s used to record measurement
the linear length of 0-500mm range. It has analog and digital output, Standardized interface. It’s strong and durable that is
especially suitable the occasion for short distances and high resolution.
The main features: Easy installation, with spare installation datum, many choices according to need; install the space is little, easy in
assembly, without direction. Mechanical tolerance does not affect the measurement precision; It’s Widely used in the linear guide system The hydraulic cylinder system; the stretch systems; storage location; Pressure machinery; Paper manufacturing machinery; textile manufacturing machine; Sheet metal machinery; Printing machinery; Level control with water flush; Construction machinery and other
related size measurement or position control; It could be an external PLC secondary instrument; Single chip collection system.
Boundary dimension
Technical parameters
| SORT | TECHNICAL PARAMETERS | ||||
| Signal output form | Digital output P G | Analog output V/MA/R G | |||
| Output characteristics | TL liquid / square wave | Voltage（V）：0-5v,0-10v,1-5v | |||
| Parallel output,Serial,ssi Port,MHz,profibus,CanOpen | Current（MA)：4-20mA,0-20mA | ||||
| RS485 | Resistance（R):0-5kΩ,0-10KΩ,others | ||||
| Supply Voltage | DC5V,DC5-24V | DC5-24V, DC12V,DC24V | |||
| Measure stroke | 0-2000mm | 0-1500mm | |||
|
Maximum speed reciprocating |
1000 | 1000 | |||
| Definition | 0.004、0.005、0.01 others | Nature of infinitesimal | |||
| Measurement wire | Φ0.6 | Φ0.6 | |||
| Linearity | 0.05%FS | 0.1%FS | |||
| Pull material | Stainless steel | Stainless steel | |||
| Work force | About 5N | About 5N | |||
| Operating temperature | -25℃～+85℃ | -25℃～+85℃ | |||
| Storage temperature | -35℃～+95℃ | -35℃～+95℃ | |||
| Weight | 700g | 700g | |||
| Useful life | >1×106 | >1×106 | |||
| Protection grade | IP54 (Criterion) | IP54 (Criterion) | |||
| MN-150-P |
Measurement range |
resolution |
Output characteristics |
Supply voltage |
Incremental type |
| MN-150-V/MA/R |
Measurement range |
Nature of infinitesimal |
Output characteristics |
Supply voltage |
Mixed type |
| MN-150-G |
Measurement range |
Definition |
Output characteristics |
Supply voltage |
Absolute value type |
Four wires 4-20mA wiring instructions:
Red:24V DC Black: 0V Yellow:+I White: -I
Three wires: Black with White together
Web: www.minor-tech.com/en/ Skype: minorsteven
Tel:0755-27058268 0755-27058298 Fax:0755-27058238
Email: sensorminor@gmail.com
