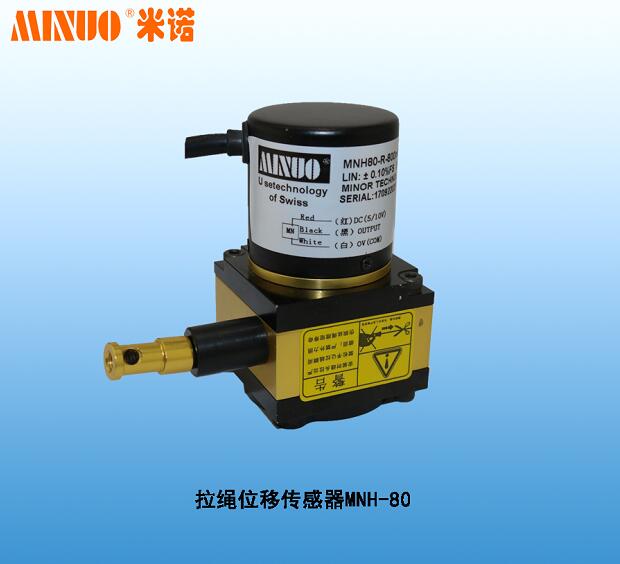

Draw Wire Sensor MNH-80
Click：
Draw Wire Sensor MNH-80
Product features and USES
It’s belongs of Mini Draw Wire Sensor, It’s used to record measurement
the linear length of 0-500mm range. It has analog and digital output, Standardized interface. It’s strong and durable that is
especially suitable the occasion for short distances and high resolution.
The main features: Easy installation, with spare installation datum, many choices according to need; install the space is little, easy in
assembly, without direction. Mechanical tolerance does not affect the measurement precision; It’s Widely used in the linear guide system The hydraulic cylinder system; the stretch systems; storage location; Pressure machinery; Paper manufacturing machinery; textile manufacturing machine; Sheet metal machinery; Printing machinery; Level control with water flush; Construction machinery and other
related size measurement or position control; It could be an external PLC secondary instrument; Single chip collection system.

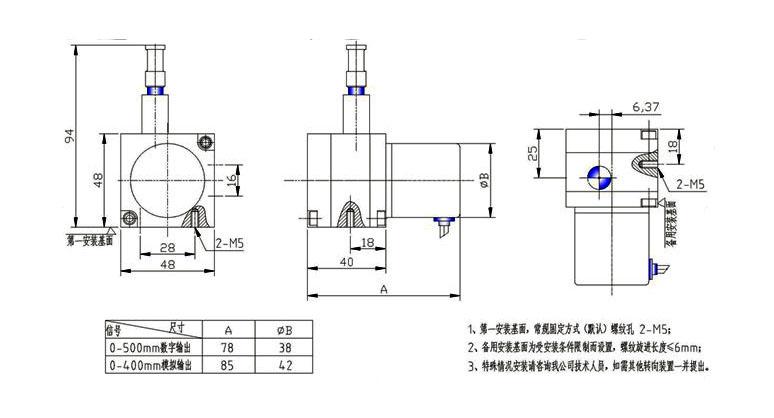

Boundary dimension
Technical parameters
Four wires 4-20mA wiring instructions:
Red:24V DC Black: 0V Yellow:+I White: -I
Three wires: Black with White together
Web: www.minor-tech.com/en/ Skype: minorsteven
Tel:0755-27058268 0755-27058298 Fax:0755-27058238
Email: sensorminor@gmail.com
Product features and USES
It’s belongs of Mini Draw Wire Sensor, It’s used to record measurement
the linear length of 0-500mm range. It has analog and digital output, Standardized interface. It’s strong and durable that is
especially suitable the occasion for short distances and high resolution.
The main features: Easy installation, with spare installation datum, many choices according to need; install the space is little, easy in
assembly, without direction. Mechanical tolerance does not affect the measurement precision; It’s Widely used in the linear guide system The hydraulic cylinder system; the stretch systems; storage location; Pressure machinery; Paper manufacturing machinery; textile manufacturing machine; Sheet metal machinery; Printing machinery; Level control with water flush; Construction machinery and other
related size measurement or position control; It could be an external PLC secondary instrument; Single chip collection system.
Boundary dimension
Technical parameters
| SORT | TECHNICAL PARAMETERS | ||||
| Signal output form | Digital output P G | Analog output V/MA/R G | |||
| Output characteristics | TL liquid / square wave | Voltage（V）：0-5v,0-10v,1-5v | |||
| Parallel output,Serial,ssi Port,MHz,profibus,CanOpen | Current（MA)：4-20mA,0-20mA | ||||
| RS485 | Resistance（R):0-5kΩ,0-10KΩ,others | ||||
| Supply Voltage | DC5V,DC5-24V | DC5-24V, DC12V,DC24V | |||
| Measure stroke | 1000mm | 800mm | |||
|
Maximum speed reciprocating |
1000 | 1000 | |||
| Definition | 0.004、0.005、0.01 others | Nature of infinitesimal | |||
| Measurement wire | Φ0.6 | Φ0.6 | |||
| Linearity | 0.05%FS | 0.1%FS | |||
| Pull material | Stainless steel | Stainless steel | |||
| Work force | About 5N | About 5N | |||
| Operating temperature | -25℃～+85℃ | -25℃～+85℃ | |||
| Storage temperature | -35℃～+95℃ | -35℃～+95℃ | |||
| Weight | 600g | 600g | |||
| Useful life | >1×106 | >1×106 | |||
| Protection grade | IP54 (Criterion) | IP54 (Criterion) | |||
| MN-80-P |
Measurement range |
resolution |
Output characteristics |
Supply voltage |
Incremental type |
| MN-80-V/MA/R |
Measurement range |
Nature of infinitesimal |
Output characteristics |
Supply voltage |
Mixed type |
| MN-80-G |
Measurement range |
Definition |
Output characteristics |
Supply voltage |
Absolute value type |
Four wires 4-20mA wiring instructions:
Red:24V DC Black: 0V Yellow:+I White: -I
Three wires: Black with White together
