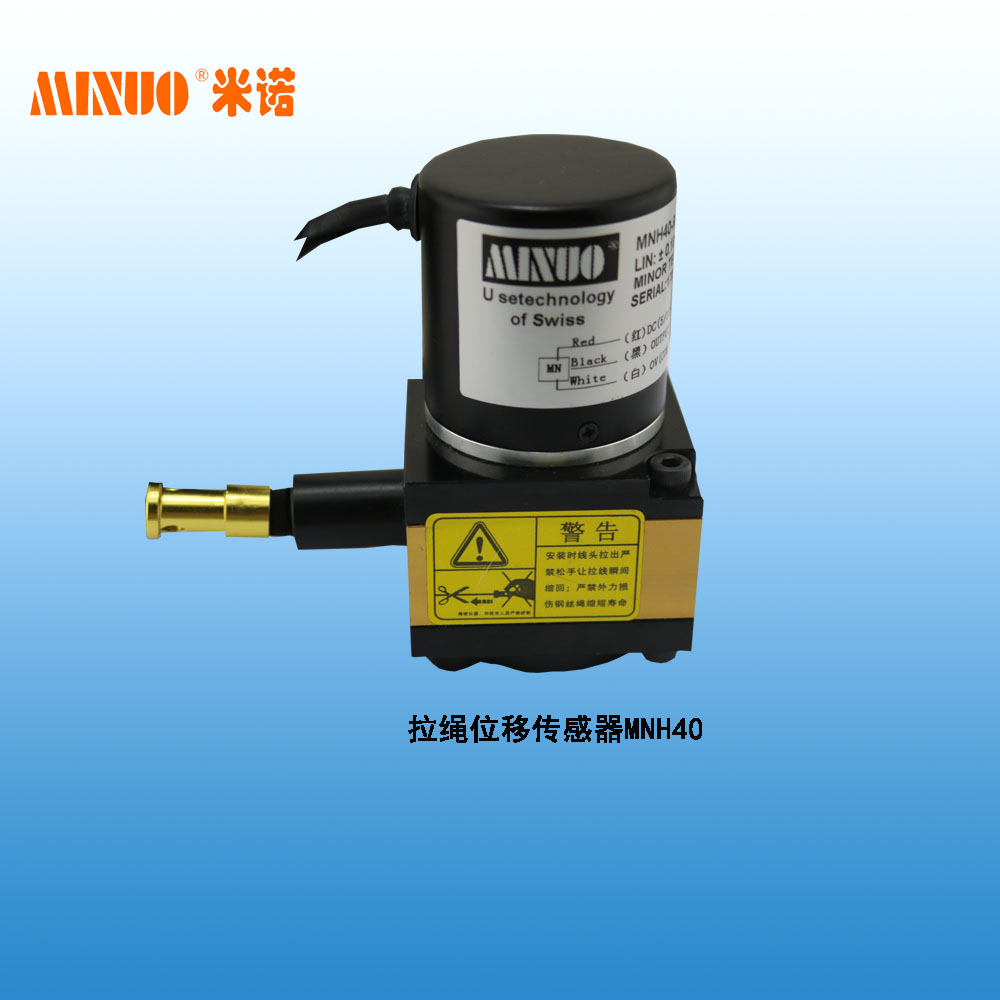

Draw-wire position sensor measures linear movements MNH-40



Product features and USES
It’s belongs of Mini Draw Wire Sensor, It’s used to record measurement
the linear length of  0-500mm range. It has analog and digital  output, Standardized interface. It’s strong and durable that is
especially suitable the  occasion for short distances and high resolution.
The main features: Easy installation, with spare installation datum,  many choices according to need; install the space is little, easy in
assembly, without direction. Mechanical tolerance does not affect  the measurement precision; It’s Widely used in the linear guide system The hydraulic cylinder system; the stretch systems; storage location;  Pressure machinery; Paper manufacturing machinery; textile manufacturing machine; Sheet metal machinery; Printing machinery;  Level control with water flush; Construction machinery and other
related size measurement or position control; It could be an external  PLC secondary instrument; Single chip collection system.


Boundary dimension


Technical parameters
SORT TECHNICAL PARAMETERS
Signal output form  Digital output  P  G  Analog output V/MA/R G
Output characteristics TL liquid / square wave Voltage(V):0-5v,0-10v,1-5v
Parallel output,Serial,ssi Port,MHz,profibus,CanOpen Current(MA):4-20mA,0-20mA
RS485 Resistance(R):0-5kΩ,0-10KΩ,others
Supply Voltage DC5V,DC5-24V DC5-24V, DC12V,DC24V
Measure stroke 500mm 400mm
Maximum speed
 reciprocating
1000 1000
Definition 0.004、0.005、0.01 others Nature of infinitesimal
Measurement wire Φ0.6 Φ0.6
Linearity 0.05%FS 0.1%FS
Pull material Stainless steel Stainless steel
Work force About 5N About 5N
Operating temperature -25℃~+85℃ -25℃~+85℃
Storage temperature -35℃~+95℃ -35℃~+95℃
Weight 500g 500g
Useful life >1×106 >1×106
Protection grade IP54 (Criterion)  IP54 (Criterion)
MN-40-P Measurement
range
resolution Output
characteristics
Supply
voltage
Incremental type
MN-40-V/MA/R Measurement
range
Nature of infinitesimal Output
characteristics
Supply
voltage
Mixed type
MN-40-G Measurement
range
Definition Output
characteristics
Supply
voltage
Absolute value  type


Four wires 4-20mA wiring instructions:
         Red:24V DC      Black: 0V      Yellow:+I      White: -I
Three wires: Black with White together
