MN700 Series Linear Position Sensor
Click：
MN700 Series Linear Position Sensor
NN700 系列直线位移传感
High Pressure, Wide Temperature Range
耐高压、高温传感器

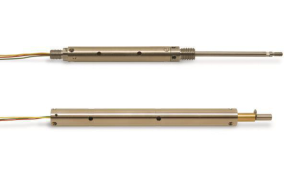

The MN700 Series Linear Position Sensors are designed to operate reliably in extreme environments such as “down hole” oil well applications at temperatures between -40° and over 200°C and pressures of up to 35,000 psi. Containing a conductive plastic resistive element, the MN700 Series has a longer operating life and resolution than traditional wire-wound units. Offered in miniature diameters for space-saving advantages, the MN700 Series is also designed to meet a wide variety of interface and mounting requirements making it ideal for applications requiring accurate performance in high temperature and high pressure environments with limited space.
MN700系列线性位置传感器被设计成，可靠地在油井下等极端环境中应用，使用环境温度在-40°和200°C和压力高达35000 psi。该传感器包含导电塑料电阻元件,MN700系列使用寿命长,分辨率比传统的线绕单位高。为节省空间的优势,提供了在微型直径中使用。MN700系列也是为了满足各种接口和越来越多的需求，使其适合应用在高温高压环境中和有限的空间要求。

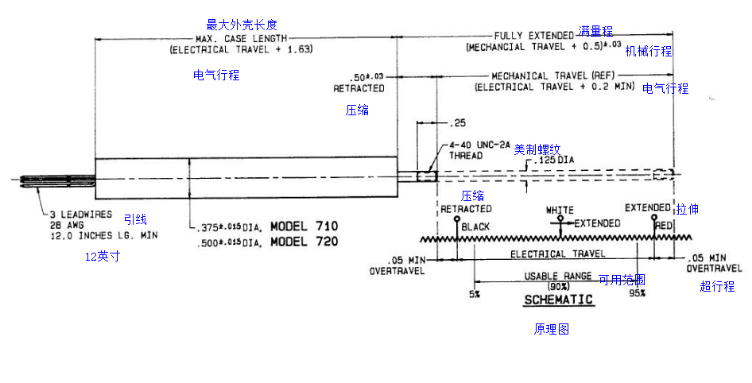

Dimensions（尺寸图）
Electrical Specifications
电气规格
Electrical Travel: 1 in. min to 6 in. max Total Resistance: 1.23 KΩ per inch Resistance Tolerance: ±25% Accuracy over useable range:
(Ind. Lin. See Note 2) STD: ± 0.020 inch Best: ± 0.005 inch
电气行程:1英寸~6英寸
总电阻:1.23 KΩ每英寸电阻阻值:±25%的准确率超过可用的范围:
(印第安纳州林。见注2)STD:±0.020英寸最好:±0.005英寸
Power Rating @ 175°C: 0.25 Watt per inch Derated to 0.10 Watts @ 250°C
Output smoothness: 0.1%
Insulation resistance @250 VDC: 1000 Megohms Dielectric strength: 250 VRMS
Operating Temperature Range: -40° to +200°C Storage Temperature Range: -40° to +250°C
额定功率@ 175°C:0.25瓦特每英寸走低至0.10瓦特@ 250°C
输出平滑度:0.1%
绝缘电阻@250 VDC:1000高阻绝缘强度:250 VRMS
工作温度范围:-40°+ 200°C存储温度范围:-40°+ 250°C
Mechanical Specifications
机械规范
Mechanical Travel: Elect travel + 0.2 in. min Actuation Force: 2 oz. max
Repeatability: within 0.001 inch Life: 5 x 105 cycles
机械行程 :行程+ 0.2英寸最小驱动力量:2盎司max
可重复性:0.001英寸
长寿命:5 x 105
Dimensions（尺寸图）
