KPZ-34 Series Linear Position Sensors
This mini position transducer is designed for direct absolute measurement and available
in stroke length up to 150mm. The mini design is suitable for mounting in instruments or
machines with limited space.
An improved technique for making connection to resistance track (Double Trimming
Technique) ensures the higher degrees of reliability and linearity, while multi-fingers wipers stabilize output signals, even in the most adverse working conditions.
Unique Features
Stroke 10-400mm
High Resolution infinite
Excellent Repeatability ±0.01mm

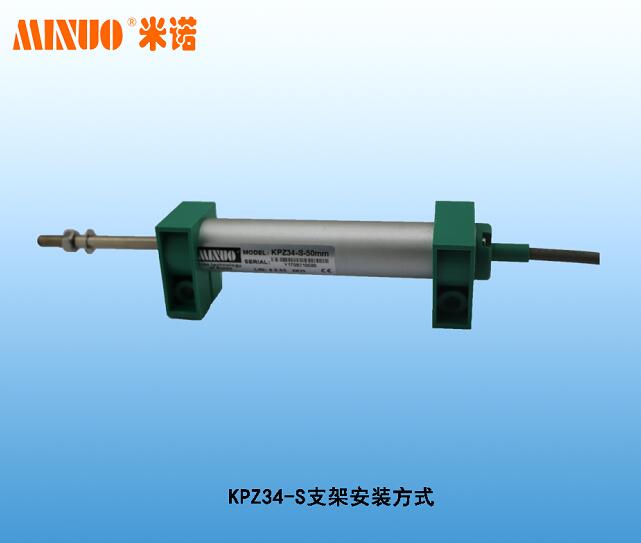

KPZ34S-two adjustable brackets

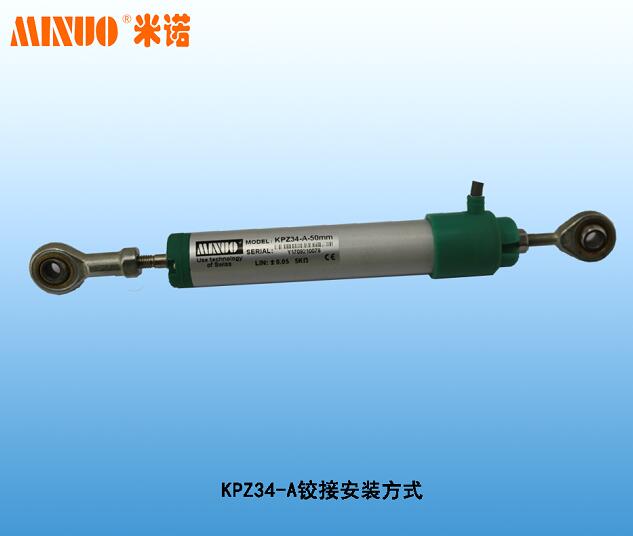

KPZ34A-two self-aligning ball joints

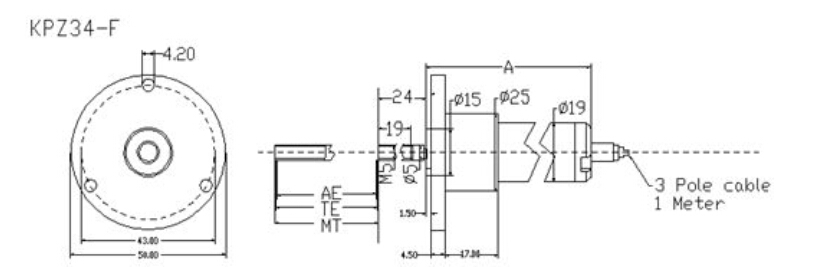

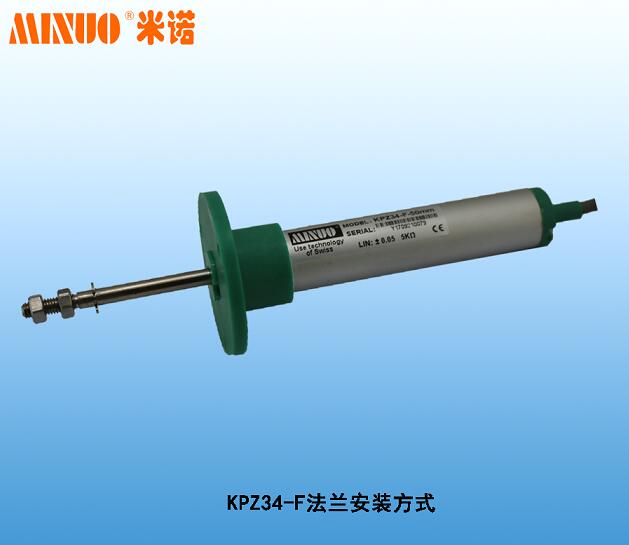

KPZ34F-flange mounted
Three mounting methods
Enviornmental Parameters
Very Long Life >100×106 Cycles Operating Speed 5m/s max
Operting temperature -50~120℃ Vibration IEC 68-2-29: 1968 40g
Storage Temperature 50~120℃ Shock IEC 68-2-29: 1968 40g
Outstanding Linearity up to ±0.05% Sealing IP65
