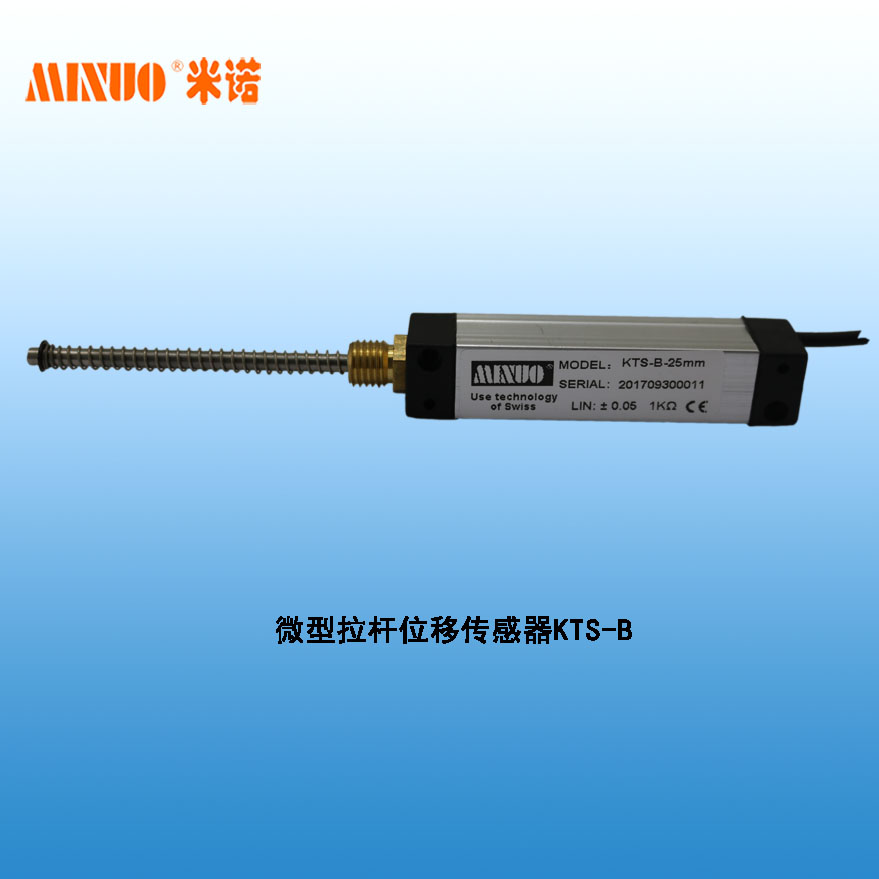

KTS-B Self-return Series Click：


Stroke range: 0-125mm,
Analog output:+5V,0-5V,0-10V,4-20mA
with 100mm shield wire;
Suitable  for narrow space situation,
such as textile equipment, teaching
and testing instruments, monitoring
and control equipment etc.

KTS-B Self-return Series mm 10 15 25 50 75 100 125
Total Electrical Travel (T.E) mm 11 16 26 51 76 101 126
Active Electrical Travel (A.E) mm 10 15 25 50 75 100 125
Resistance Range±20% kΩ 1.0 5.0
Independent Linearity ±% 0.05
Mechanical Travel (M.T) mm 11 16 26 51 75 101 126
Output   Voltage divider
Resolution   Infinite
Operating Temperature C° -50 + 120
Dimensions A mm 47 52 62 87 112 137 162
Dimensions for reference only and subject to change without prior notice.
