KTR-C Self-return Series
Click：2345
External connected signal processing,
Stroke range: 0-100mm,
Analog output: +5V,0-5V, 0-10V, 4-20mA,
With 1m shield wire; Self return by the
spring strength. Such as tension regulating
device, speed control, material automatically
conveying system, package machine,
production lines etc.

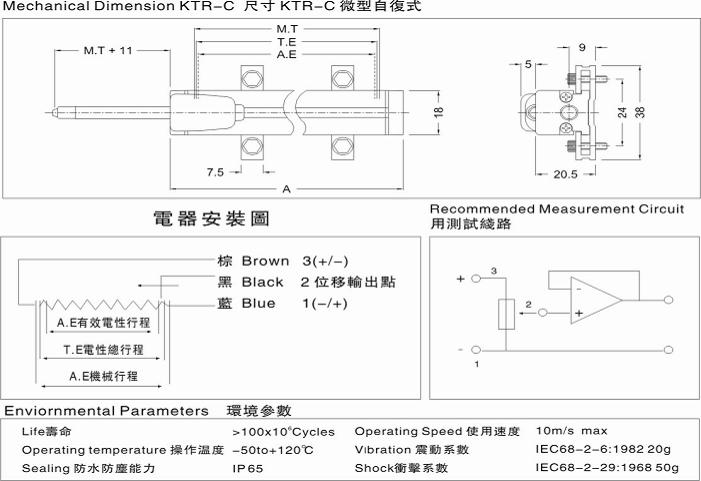

Dimensions for reference only and subject to change without prior notice.
| KTR-C Built-in Spring Series | mm | 10 | 15 | 25 | 50 | 75 | 100 |
| Total Electrical Travel (T.E) | mm | 12 | 17 | 27 | 52 | 77 | 102 |
| Active Electrical Travel (A.E) | mm | 10 | 15 | 25 | 50 | 75 | 100 |
| Resistance Range ±20% | kΩ | 1.0 | 5.0 | ||||
| Independent Linearity | ±20% | 0.05 | |||||
| Mechanical Travel (M.T) | mm | 13 | 18 | 28 | 53 | 78 | 103 |
| Output | Voltage Divider | ||||||
| Resolution | Infinite | ||||||
| Operating Temperature | C° | -50 + 120 | |||||
| Dimensions A | mm | 56 | 61 | 71 | 96 | 121 | 146 |
| Total Dimensions | mm | 80 | 91 | 110 | 160 | 210 | 262 |
