KTR-A Self-return Series
Click：1656
External connected signal processing,
Stroke range: 0-100mm,
Analog output: +5V,0-5V, 0-10V, 4-20mA,
With 1m shield wire; Self return by the
spring strength. Such as tension regulating
device, speed control, material automatically
conveying system, package machine,
production lines etc.
| KTR-A Roll wheel gauge head | mm | 10 | 15 | 25 | 50 | 75 | 100 |
| Total Electrical Travel (T.E) | mm | 12 | 17 | 27 | 52 | 77 | 102 |
| Active Electrical Travel (A.E) | mm | 10 | 15 | 25 | 50 | 75 | 100 |
| Resistance Range ±20% | kΩ | 1.0 | 5.0 | ||||
| Independent Linearity | ±20% | 0.05 | |||||
| Mechanical Travel (M.T) | mm | 15 | 20 | 30 | 55 | 80 | 103 |
| Output | Voltage Divider | ||||||
| Resolution | Infinite | ||||||
| Operating Temperature | C° | -50 + 120 | |||||

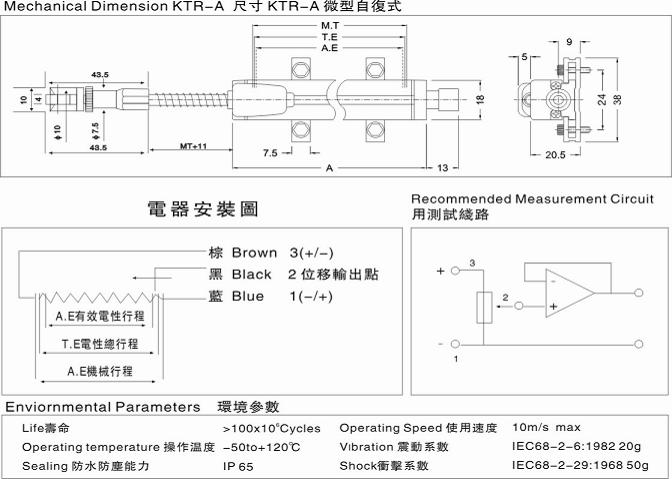

| Dimensions A | mm | 52 | 57 | 67 | 92 | 117 | 142 |
| Total Dimensions | mm | 129 | 139 | 159 | 209 | 259 | 309 |
