MNFV1-A series Magnetostrictive Linear-Displacement Sensors Click:


MNFV1-A series Magnetostrictive Linear-Displacement Sensors


GENERAL
MNFV series Magnetostrictive LinearDisplacement Sensor (short for MNFV) is a contactless linear position sensor providing high accurate absolute position measurement of displacements. Contactless ensing with highest durability, the extremely robust sensor, ideal for continuous operation under harshest industrial conditions is completely modular in mechanic and electronic design. Absolute output, no periodic re-calibration and maintenance, no need to re-zero. MNFV series of Magnetostrictive  Linear-Displacement Sensor can support variety of signal outputs as voltage,current,pulse,SSI,ModBus,Profibus bus, and supports single sensor measuring two coaxial position. Magnetostrictive linear displacement sensor can completely replace electronic device or encoder used in injection molding machines moving parts, injection, ejection precise positioning.


Application overview
Injection molding machine
Ceramic press machine
Extrusion machine
Hydraulic press



FEATURES

Contactless Sensing with Highest Durability;
Double encapsulation ensures high operating safety and optimum EMC protection;
Absolute output, no periodic re-calibration and maintenance, no need to re-zero;
Easy installation, no maintenance.



Parameters
Measuring range 80~3000mm
Operating voltage +24VDC±10%
Outputs 0~5VDC  0~10VDC  4~20mADC  SSI
Non-linearity <±0.05% F.S.or 100um max.
Repeatability <±0.002% F.S.
Resolution 16bitD/A , 1um
Temperature coefficient <±0.007%F.S./℃
Load characteristics Current output:Load Resistance 500Ω(Max.)
Voltage output:Load current 2mA(Max.)
Operating temperature -40~+85 ℃
Storage temperature -40~+100 ℃
Sealing IP65
     Note: The F.S. is short for Full Scale.


Application Overview:
MNFV1 and MNFV2 series of Magnetostrictive Linear-Displacement Sensor using non-contact magnetostrictive principle, with durability, and can be used in the injection molding machine mold, injection, transfer seat, the top of the displacement stroke detection.

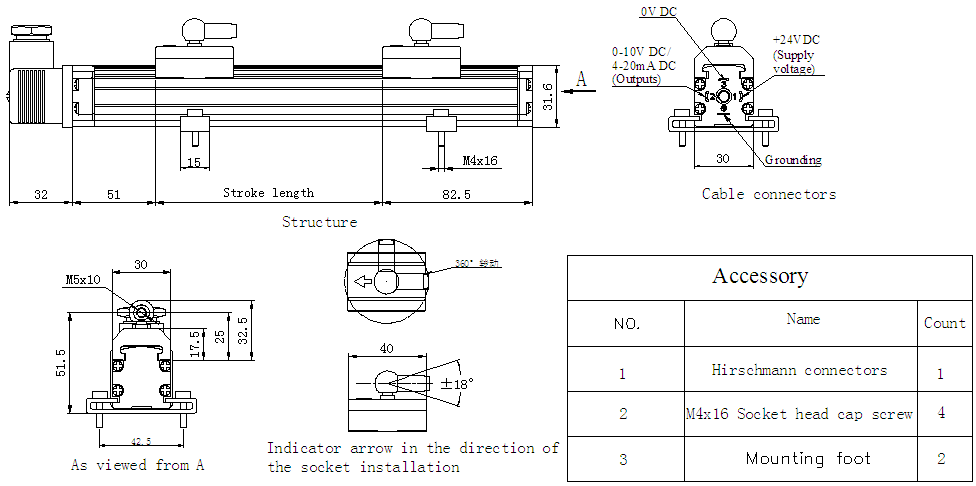

Dimension
Magnetic slider  MNFV1-A
